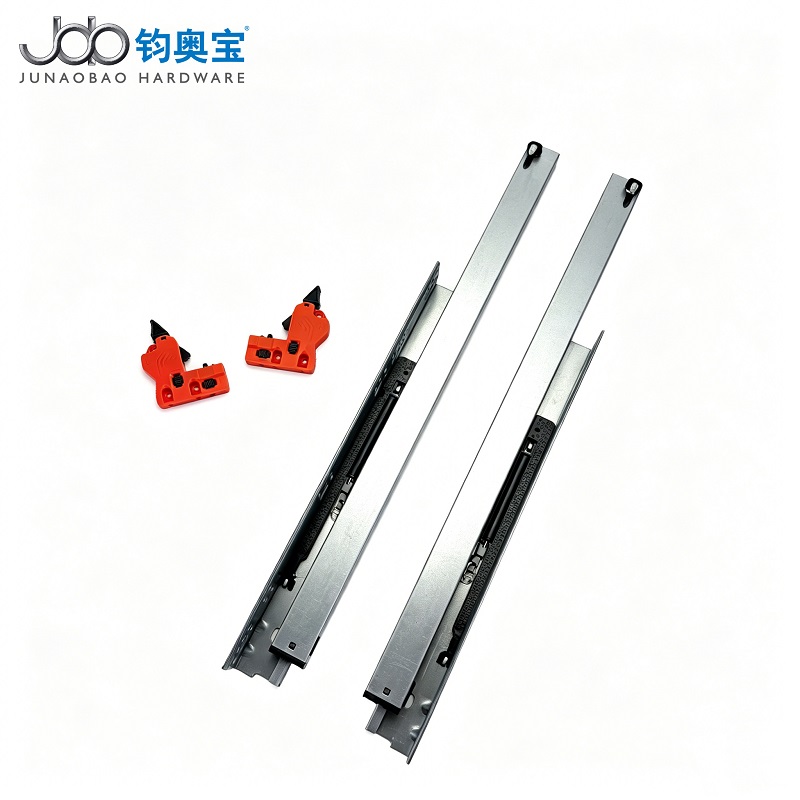

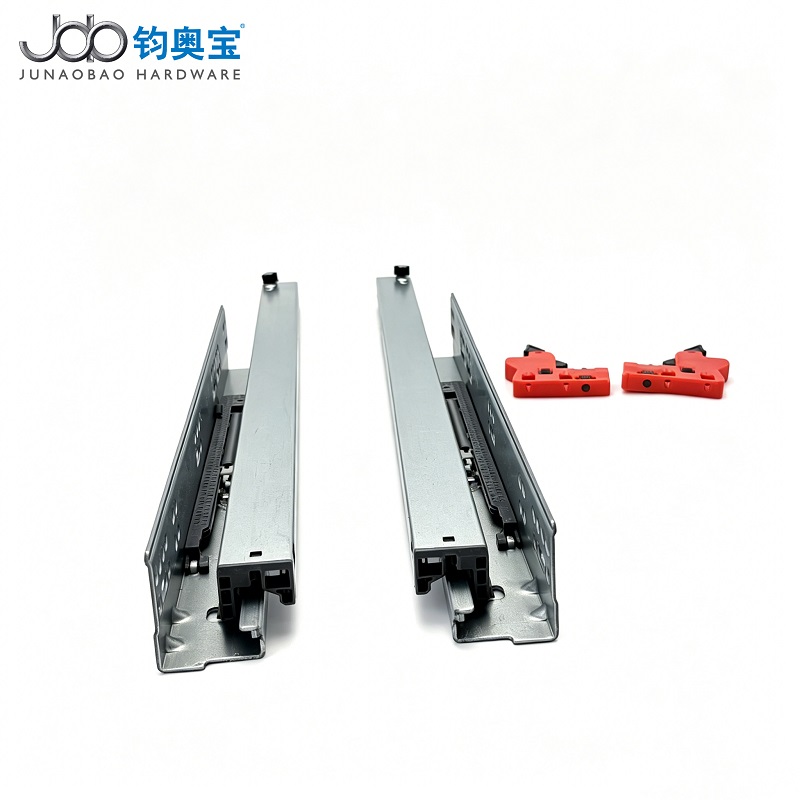

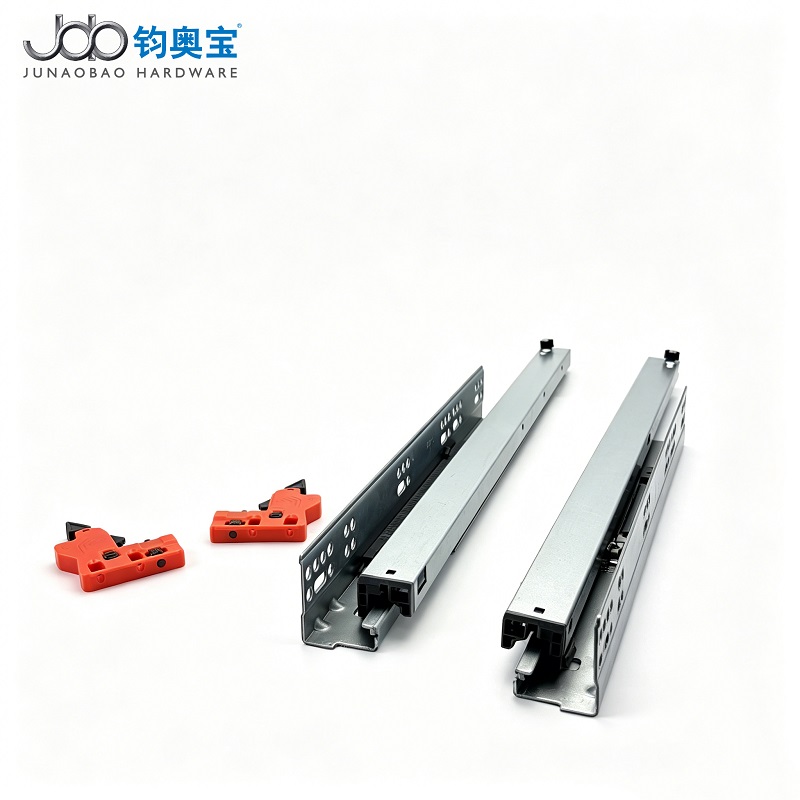

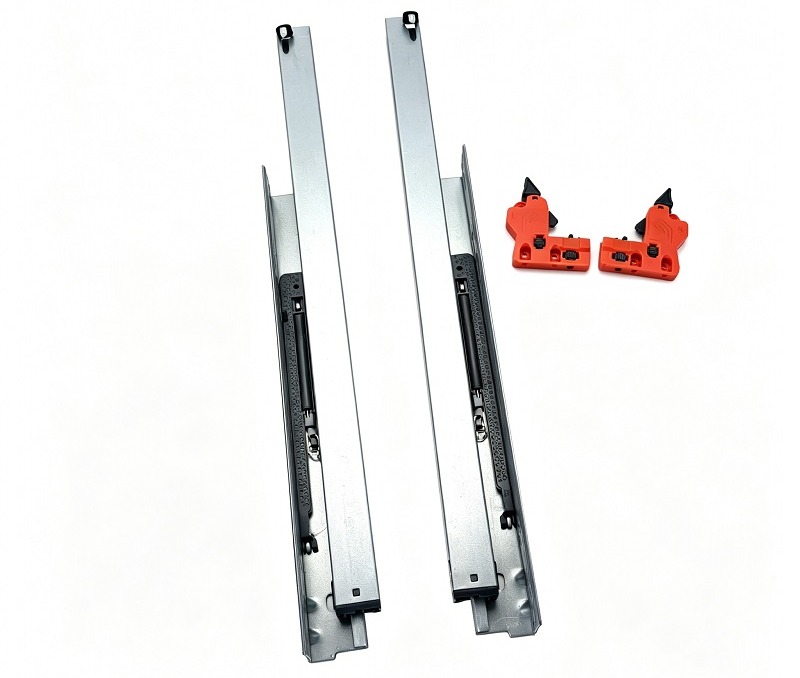

Concealed Soft Closing Undermount Drawer Runner Full Extension Hidden Drawer Slides

Hidden Soft-close Drawer Slide



Built-in soft close damper enables quiet and gentle closing to prevent slamming



Full extension travel allows full access to items inside the drawer



Precision ball bearing structure ensures smooth and stable sliding movement



Excellent load capacity and long service life for frequent daily use



Perfect for handleless cabinets, widely applied in kitchen and custom furniture

Other attributes

Place of Origin：Guangdong, China	Type：Soft-Closing Drawer Slide
Brand Name：JUNAOBAO	Model Number：JL-AJH-A
Surface color：Zinc Plated	Style：Three-section Synchronous Damping Hidden Drawer Slide
Suitable for：Room, Kitchen, Bathroom, Office,etc	Application：Cabinet, Wardrobe, Storage Drawers
Load capacity：35KG/77.16lbs	Service：OEM ODM
Material：Cold Rolled Steel	Length Optional：250-550mm
Packing：1 set/box, 25 boxes/carton	Test Cycles：More than 50,000



Drawer Slide Application Scenarios

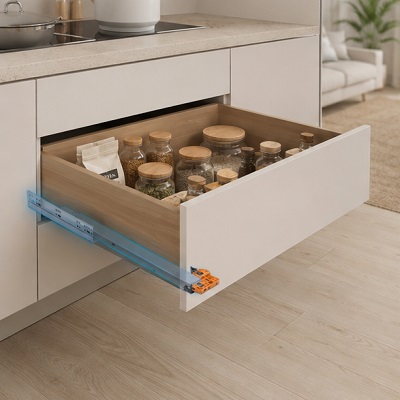

Kitchen: Cabinet storage drawers, Tableware drawers, Spice rack drawers, Knife storage drawers

Bedroom: Wardrobe clothing drawers, Bedside cabinet drawers, Dressing table drawers, Walk-in closet storage drawers

Living Room: TV cabinet drawers, Coffee table drawers, Display cabinet drawers

Study & Office: Desk file drawers, Bookcase storage drawers, Office pedestal drawers

Equipped with synchronous linkage structure, the left and right slides move perfectly in sync without jamming or tilting.

Adopting 3-section full extension design, the drawer can be fully pulled out for easy access to deep storage space.

Built-in integrated hydraulic soft-close damper automatically decelerates the drawer at the closing end to eliminate slamming noise, protecting cabinet panels from impact.

It operates steadily, effectively preventing finger pinching for safer daily use.

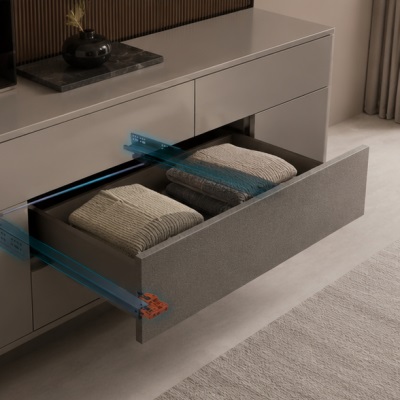

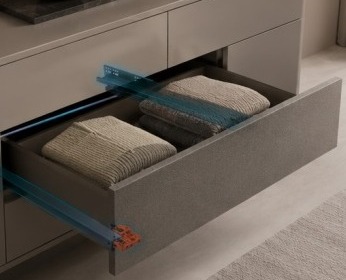

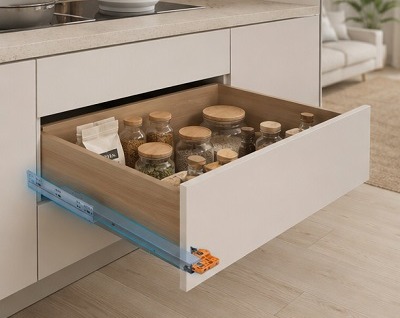

Fully concealed undermount installation hides slides under the drawer base with no exposed hardware on cabinet front, perfectly matching minimalist furniture and delivering premium neat appearance.

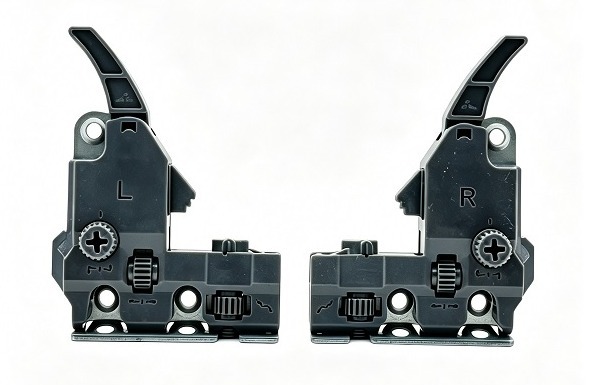

It comes with 3D adjustable clips to fine-tune drawer height, side gaps and front-back flush alignment for easy calibration.



It offers stable heavy load capacity without sagging or deformation, works durably in kitchen, bedroom, bathroom.

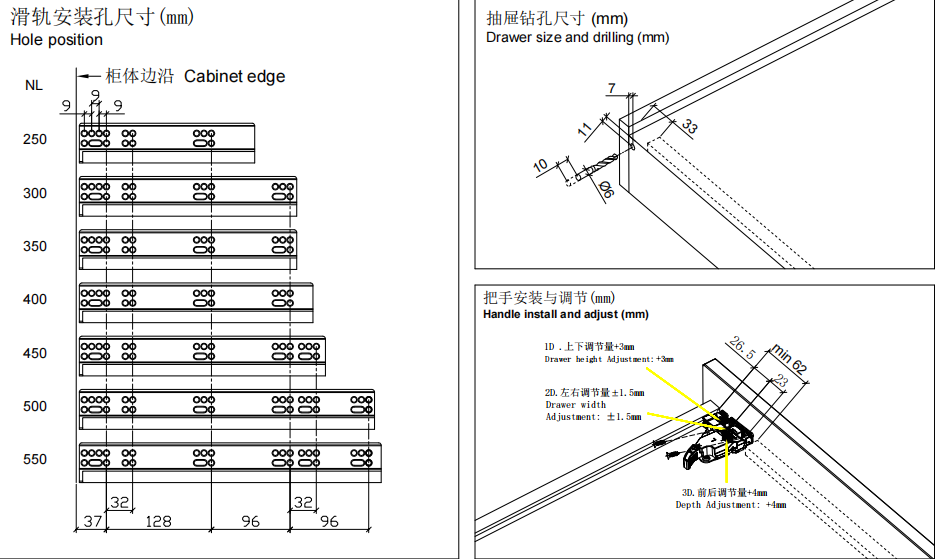

Hole distance for installation

•

——Adjust drawer vertical height

Turn the adjustment handle to raise or lower the drawer panel, align all drawers to the same horizontal level.

——Adjust left and right clearance gaps

Correct the spacing between drawer and cabinet side panels to get even uniform gaps.

1. ——Adjust front-back depth position

   Control how far the drawer panel sticks out, ensure all panels sit flush without uneven indentation or protrusion.
2.
3. ——Post-installation fine-tuning without cabinet disassembly


FAQ

· Why should I choose your factory over others?

—Our factory has 35 years of production experience with a mature production and operation system.

—We are equipped with automated production equipment and have an outstanding team composed of experienced staffs.

—We provide one-stop purchasing service covering sliding door roller, suspending door roller, side-hanging door roller, barn door roller, folding door roller, aluminum track, weather strip, bottom stopper and more.

This can greatly cut your purchasing and communication costs, while we guarantee premium products and thoughtful services for you.

· What are the quality advantages of your products?

Our core strengths lie in quiet and smooth sliding performance. We adopt premium raw materials and lean production processes. The products feature great wear, corrosion resistance and pass salt spray tests for long service life. Consistent quality is maintained across all production batches.

· Can I get samples before placing an order?

We support sample requests for testing. Samples can be provided as required and you only need to cover the shipping cost.

· How do you ensure every roller meets the same standard?

We have established a complete and strict quality control system with multi-layer inspections throughout the whole process:

—Incoming raw material inspection

—In-production patrol inspection

—Full inspection of finished goods

All products are traceable to comply with unified factory standards.

· Do you have ISO, CE or SGS certifications?

We have obtained ISO9001 quality management system certification and all our products have passed SGS testing.

· Can you customize products or packaging?

We support both OEM and ODM services.

—Product customization: We accept customized products. You need to send us samples or drawings for our technical department to verify production feasibility.

—Packaging customization: We offer logo printing, gift box design and carton design services.

· What is your lead time?

Goods will be shipped within 45 days after receiving your payment. We arrange production strictly as scheduled with scientific inventory and production schedule management. We can also quickly coordinate production for urgent orders.

· What after-sale do you offer?

We have a comprehensive after-sales system. We will respond promptly and provide proper solutions once any issues arise. Meanwhile, we offer long-term professional technical consultation for all cooperative clients.

· Which countries do you export to?

We have years of practical export experience and serve buyers worldwide. Our products sell well in American countries including the US, Mexico and Brazil; European countries such as Spain, Italy, Germany and Portugal; Asian countries including Japan, Singapore, Malaysia and India.

· Is your factory suitable for long-term stable cooperation?

We operate with integrity and aim to build long-term win-win partnerships with clients. We strictly honor all commitments, maintain efficient daily communication, continuously upgrade product quality and supporting services to be your reliable long-term supplier.
